Description
Overview

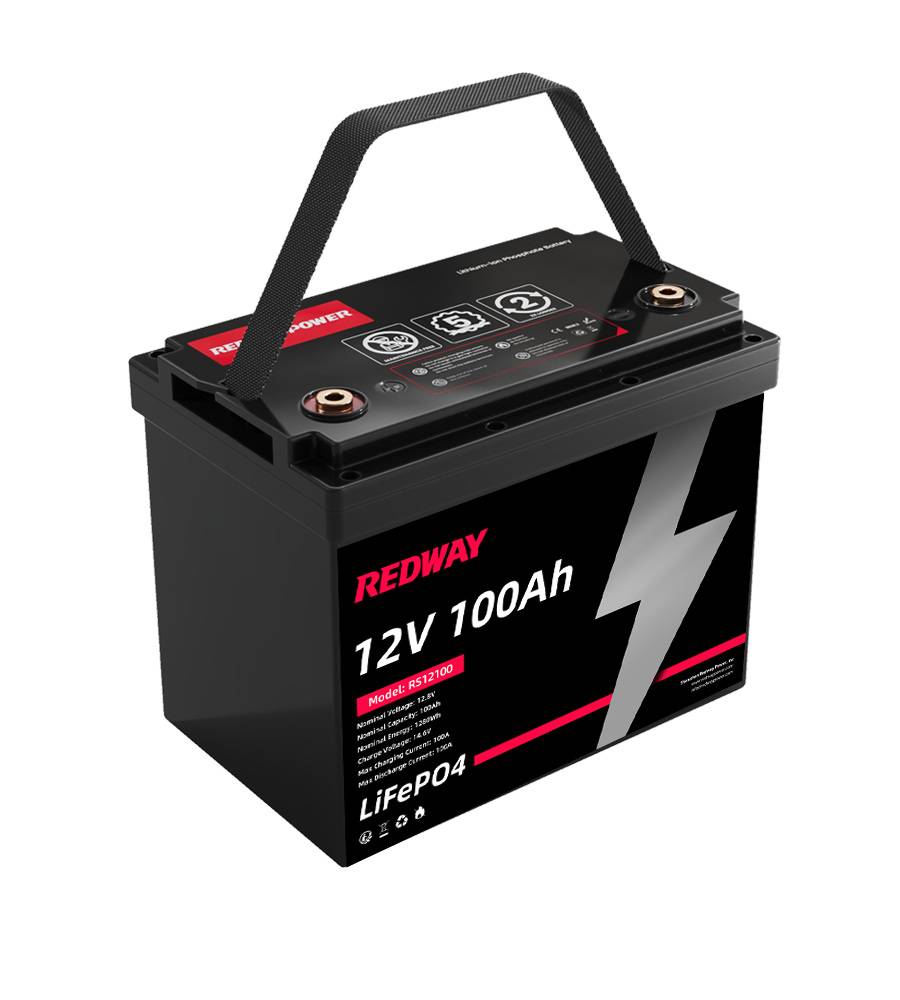

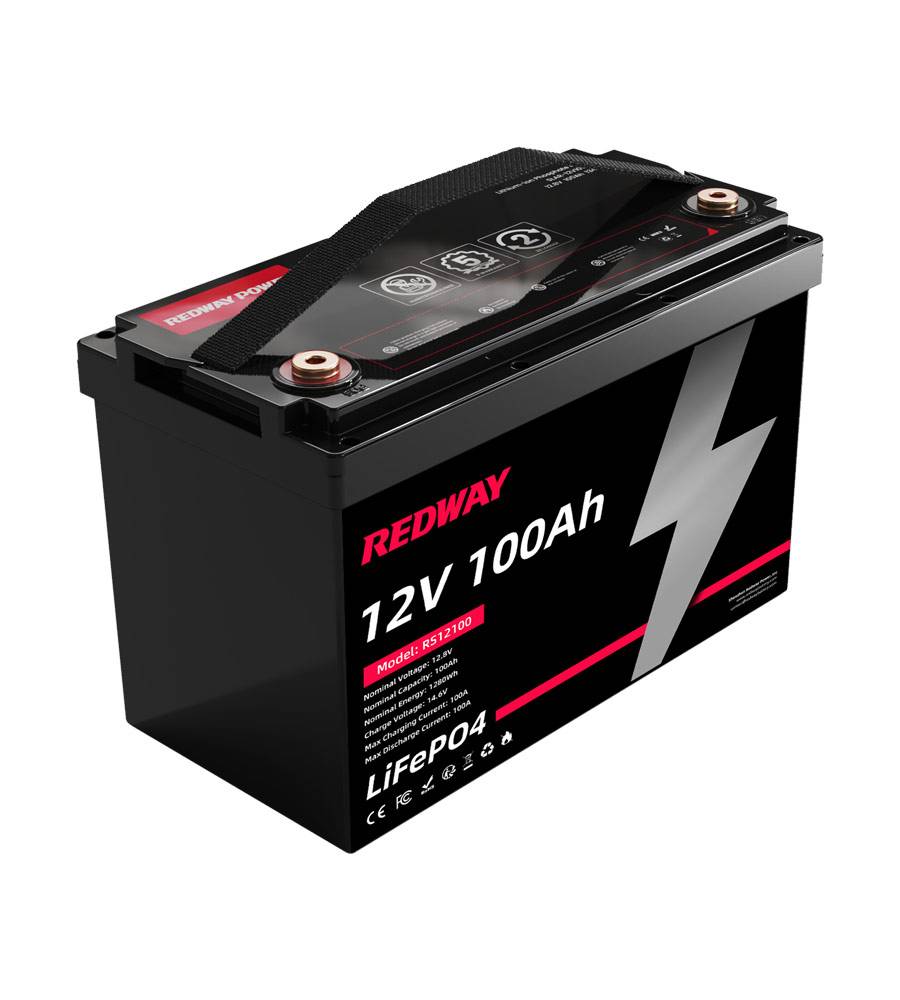

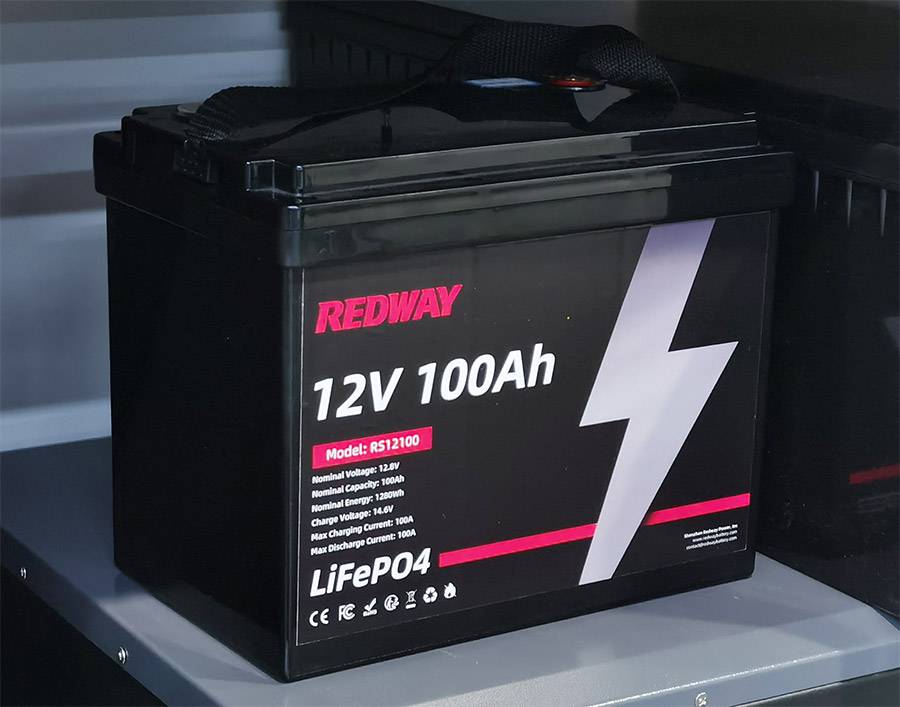

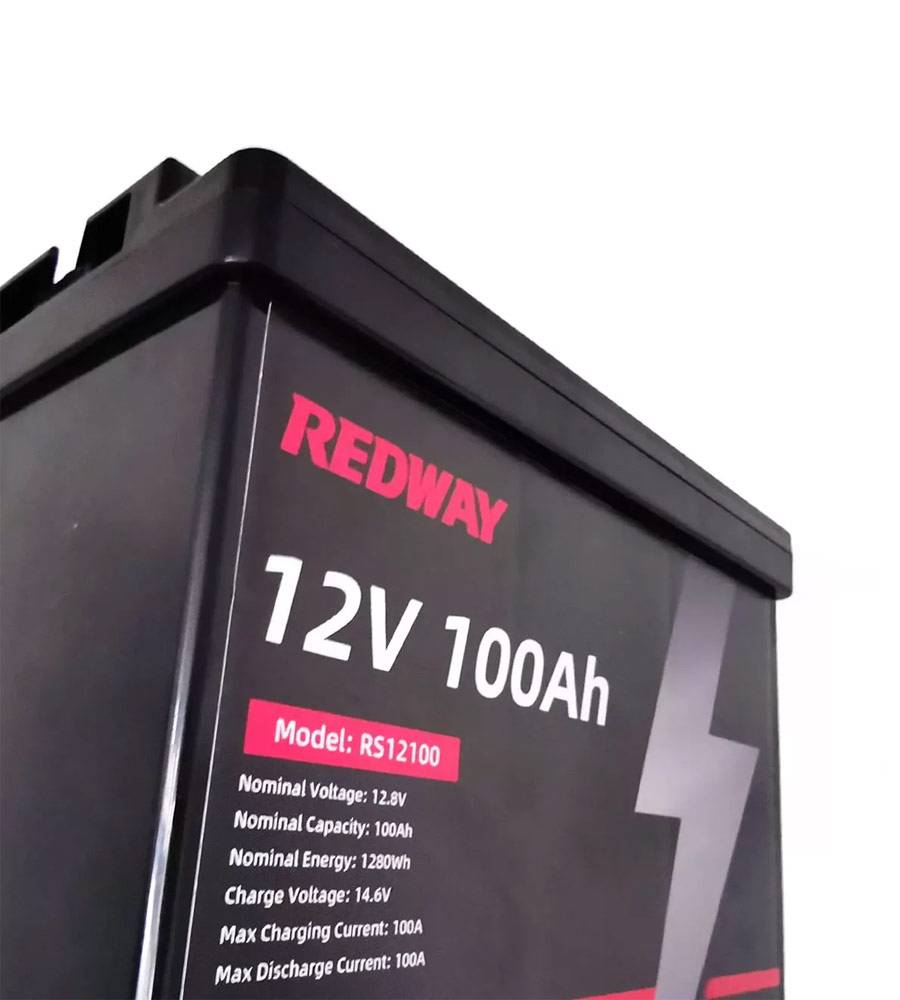

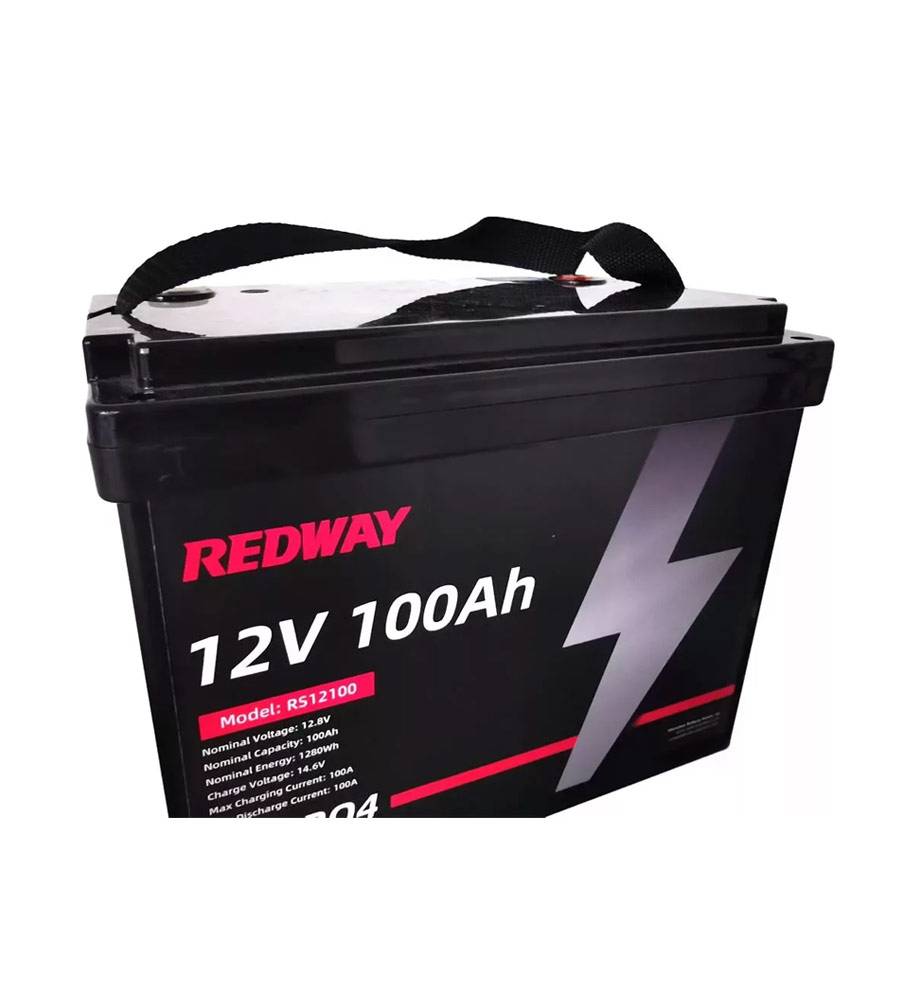

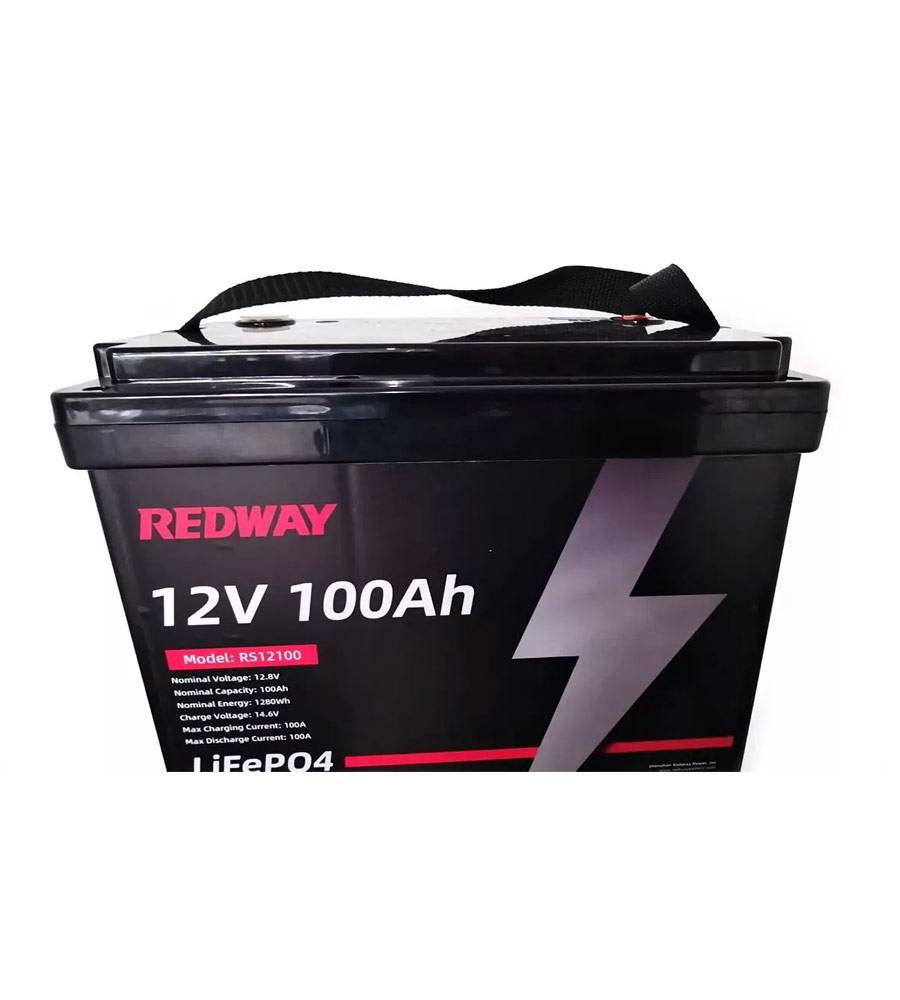

The 12.8V 100Ah LiFePO4 Battery is a compact and powerful energy storage solution, perfect for a wide range of applications including RV, marine, and off-grid power systems. With a nominal energy of 1280Wh, a long cycle life of over 5000 cycles, and robust protection features, it delivers reliable power over its long lifespan.
Key Features
- High Capacity & Energy Density: 1280Wh energy capacity to meet various power demands.
- Long Cycle Life: Over 5000 cycles at 80% Depth of Discharge (DOD), ensuring extended service life.
- Advanced BMS Protection: Smart BMS (JBD/DALY) for overcharge, over-discharge, overcurrent, and short-circuit protection.
- Compact Size: BCI Group 24 dimensions (260 x 168 x 210 mm) for easy installation in space-constrained environments.
- IP65 Rating: Provides dust and water resistance, making it suitable for outdoor applications.
- Versatile Temperature Range: Operates efficiently in temperatures from -20°C to 65°C during discharge and 0°C to 60°C during charging.
- Expandable Storage: Supports up to 6 parallel connections for larger capacity needs.
- Optional Features: Upgrades like Bluetooth, GPS, 4G, and Wi-Fi for real-time battery monitoring via app or web interface.
Applications
The 12.8V 100Ah LiFePO4 Battery is ideal for:
- RV & Marine Power Systems
- Solar Energy Storage
- Off-Grid Power Solutions
- Backup Power Systems
- Electric Vehicles & Golf Carts
Product Description
The 12.8V 100Ah LiFePO4 Battery is designed for high performance and long-lasting reliability. It is built with advanced LiFePO4 technology, providing enhanced safety and longer life compared to traditional lead-acid batteries. The battery features an integrated BMS for protection against common issues such as overvoltage, undervoltage, and overheating, ensuring safe operation under various conditions.
The IP65-rated ABS battery shell is both lightweight and durable, designed to withstand harsh environmental conditions, making it suitable for outdoor and mobile applications. Its compact size and robust design make it a reliable power source for all your energy needs.
Additional Features
- Low Self-Discharge Rate: Only 3% per month, ensuring minimal loss of stored energy during idle periods.
- Fast Charging Compatibility: Supports both normal and fast charging to meet your power demands efficiently.
- Environmentally Friendly: Free from toxic materials, 100% maintenance-free, and fully recyclable.
- Optional Upgrades: Includes self-heating, Bluetooth, GPS, app integration, cooling fans, and solar MPPT for enhanced performance and monitoring.
Why Choose the 12.8V 100Ah LiFePO4 Battery?
With its high energy density, long lifespan, and advanced protection features, the 12.8V 100Ah LiFePO4 Battery is the ideal choice for anyone seeking a reliable and efficient energy storage solution. Whether you need power for your RV, solar system, or off-grid setup, this battery offers exceptional performance with a focus on safety, durability, and ease of use.
How Does the 12V 100Ah LiFePO4 Battery Deliver Reliable and Efficient Power?
The 12V 100Ah LiFePO4 battery offers 1280Wh of stable energy storage with over 4000 deep cycles and advanced Battery Management System (BMS) protection. Lightweight and maintenance-free, it provides fast charging, long lifespan, and superior safety, making it ideal for solar energy, RVs, marine, and backup power applications.
What are the key specifications of the 12V 100Ah LiFePO4 battery?
This battery features a nominal voltage of 12.8V and a capacity of 100Ah, delivering approximately 1280Wh of usable energy. It supports continuous discharge currents up to 100A and peak currents up to 150A. The battery weighs about 11-13 kg and measures roughly 330 x 220 x 170 mm. It operates efficiently between -20°C and 60°C and includes a built-in 100A BMS for safety and cell balancing.
How does the Battery Management System (BMS) improve safety and performance?
The integrated BMS monitors cell voltage, current, and temperature to prevent overcharge, over-discharge, short circuits, and thermal runaway. It balances cells to optimize battery life and supports communication protocols such as CAN, RS485, and Bluetooth for remote monitoring and diagnostics.
Why is LiFePO4 chemistry preferred for this battery?
LiFePO4 chemistry offers superior thermal stability, long cycle life exceeding 4000 cycles at 100% depth of discharge, and high energy density. It provides consistent voltage output, fast charging, and minimal maintenance compared to lead-acid batteries.
Which applications benefit most from the 12V 100Ah LiFePO4 battery?
This battery is ideal for solar energy storage, RVs, marine vessels, electric vehicles, trolling motors, and backup power systems requiring reliable, lightweight, and maintenance-free power.
How long can the battery last in terms of cycle life and years?
The battery typically delivers over 4000 full charge-discharge cycles, translating to 10-15 years of reliable service with proper care.
What customization options does LiFePO4-Battery-Factory offer?
LiFePO4-Battery-Factory provides customization in BMS settings, communication protocols (Bluetooth, CAN, RS485), casing materials, self-heating modules for cold climates, and LCD displays to tailor batteries to specific customer needs.
How should the 12V 100Ah battery be installed and maintained?
Installation requires secure mounting, correct polarity connections, and use of compatible chargers. Maintenance is minimal, focusing on terminal cleaning and battery health monitoring via the BMS interface.
What safety certifications and standards does this battery meet?
The battery complies with UL1642, IEC62133, CE, RoHS, UN38.3, MSDS, and FCC certifications, ensuring safe manufacturing, transport, and operation.
How does the 12V 100Ah LiFePO4 battery compare to lead-acid batteries?
Compared to lead-acid batteries, this LiFePO4 battery is lighter, offers 3-5 times longer cycle life, faster charging, and superior thermal stability. It requires no maintenance and reduces total cost of ownership despite higher upfront costs.
What environmental benefits does the LiFePO4 battery provide?
LiFePO4 batteries contain no toxic heavy metals or rare earth elements, reducing environmental hazards. Their long lifespan decreases waste, and their stable chemistry minimizes fire and leakage risks, making them eco-friendly energy storage solutions.
Chart: Comparison of 12V 100Ah LiFePO4 vs Lead-Acid Batteries
| Feature | LiFePO4 Battery | Lead-Acid Battery |
|---|---|---|
| Cycle Life | >4000 cycles | 300-500 cycles |
| Weight | 11-13 kg | 30-35 kg |
| Energy Density | High | Low |
| Maintenance | Minimal | Regular |
| Safety | High (BMS protected) | Moderate |
| Environmental Impact | Low | Higher (toxic materials) |
| Charging Time | Faster | Slower |
Chart: Key Specifications of 12V 100Ah LiFePO4 Battery
| Specification | Value |
|---|---|
| Nominal Voltage | 12.8V |
| Capacity | 100Ah |
| Energy | 1280 Wh |
| Continuous Discharge | 100A |
| Peak Discharge Current | 150A |
| Weight | 11-13 kg |
| Dimensions | 330 x 220 x 170 mm |
| Operating Temperature | -20°C to 60°C |
| Cycle Life | >4000 cycles (100% DOD) |
