Description
Overview

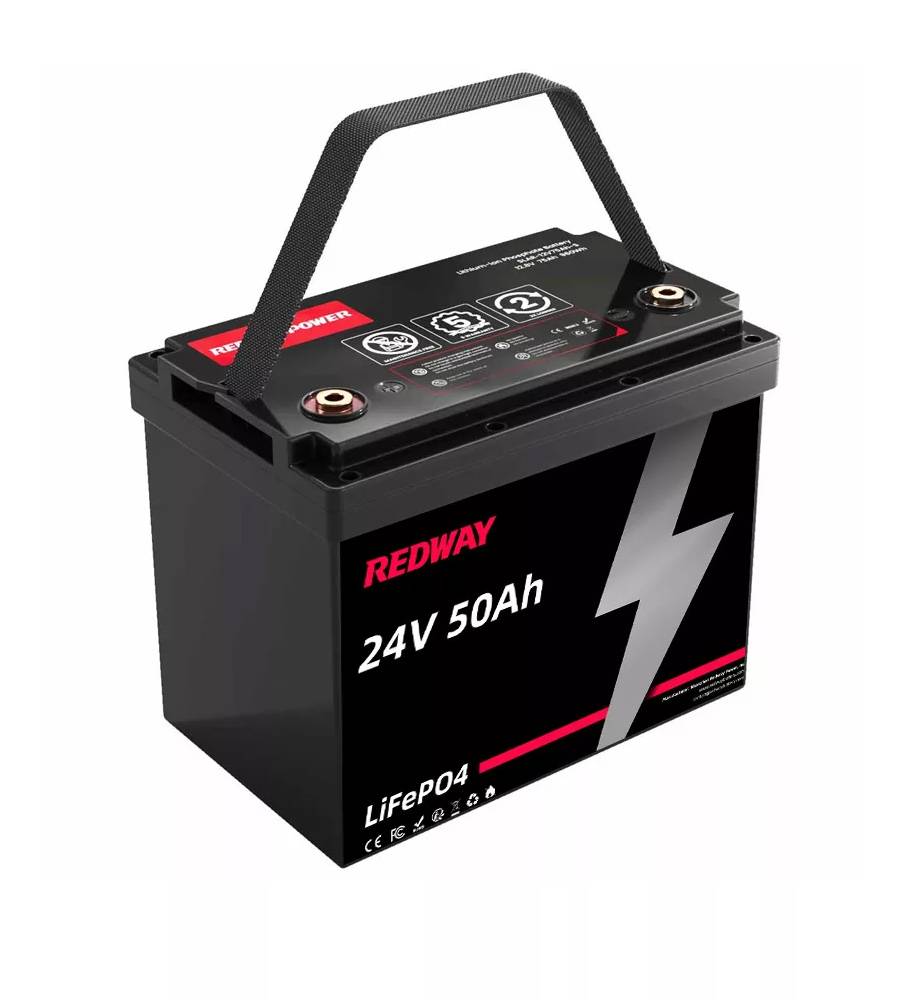

The 24V 50Ah LiFePO4 Battery delivers 1280Wh of compact power storage in a BCI Group 24 form factor. As a professional lithium battery manufacturer, we’ve designed this solution with 5,000+ cycles and IP65 protection, offering exceptional value for OEM applications requiring space-efficient energy storage.
Key Features
- Compact Energy Solution: 1280Wh capacity in standard Group 24 size (260×168×210mm)
- Balanced Performance: 50A continuous charge/discharge current
- Ultra-Lightweight: Only 10kg (22lbs) – 60% lighter than lead-acid equivalents
- Smart Ready: Optional Bluetooth/APP/WiFi monitoring
- Scalable Power: Supports up to 6 parallel connections (7.68kWh total)
Technical Specifications
- Voltage Range: 20V-29.2V (25.6V nominal)
- Temperature Range: -20°C~65°C operation
- Cycle Life: >5,000 cycles at 80% DOD
- Self-Discharge: Just 3% per month
- Internal Resistance: ≤10mΩ for high efficiency
Advanced Battery Management
- Premium BMS Options: JBD or DALY with 15+ protections
- Active Balancing: Optional for cell optimization
- Multiple Protocols: RS485/RJ45 connectivity available
- Thermal Options: Self-heating or cooling fan
Customization Options
- Branding: Custom labels, silkscreen, laser engraving
- Monitoring: LCD display or mobile APP control
- Special Features: Solar MPPT or anti-theft systems
- Charging: Normal or fast charger compatible
Industry Applications
- Marine and RV power systems
- Solar energy storage
- Electric mobility devices
- Telecom backup power
Quality Assurance
- 10-year design life with 3-year warranty
- Global certifications: UL, IEC, CE, UN38.3
- OEM/ODM support with custom solutions
- Standard BCI Group 24 compatibility
