Description
Overview

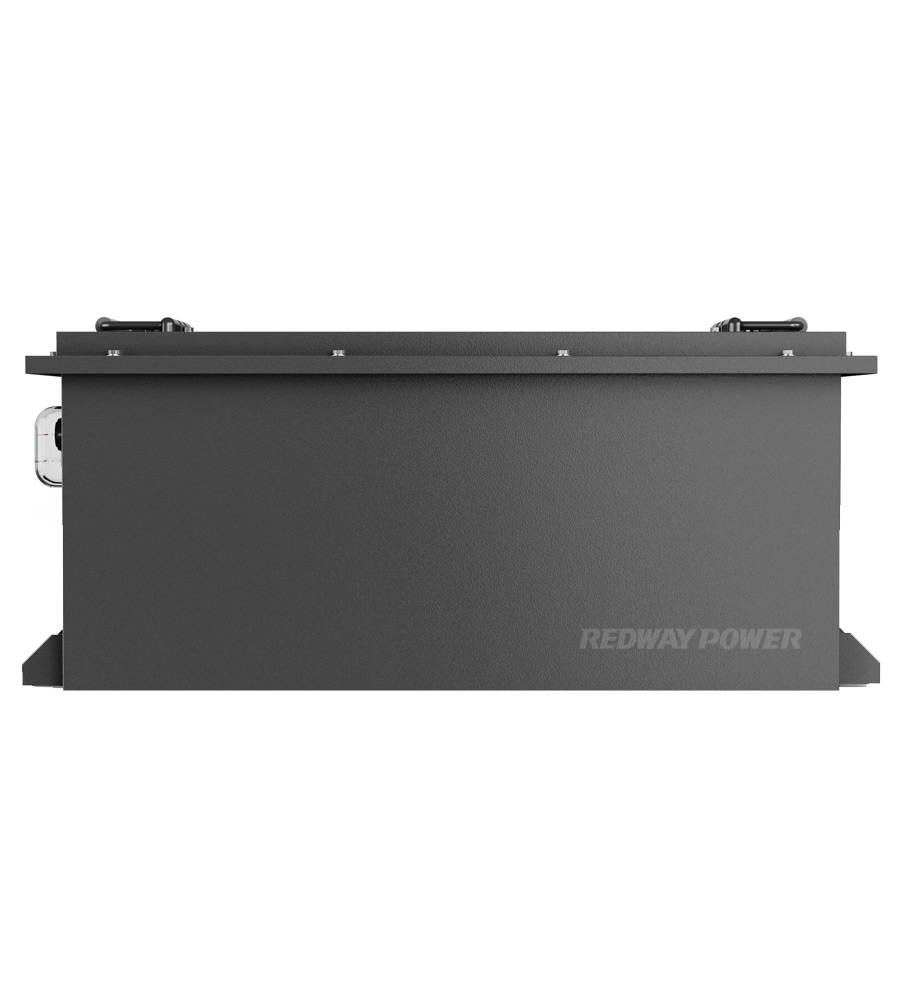

The RG51105P 51.2V 105Ah LiFePO4 Battery provides a reliable, high-performance energy storage solution, ideal for a variety of applications that require consistent power output over long durations. With a nominal energy capacity of 5.37 kWh and robust discharge capabilities, this battery is built to handle demanding conditions while offering long-term reliability and enhanced safety features.
Key Features
- High Energy Capacity: The RG51105P offers 5.37 kWh of energy storage, providing consistent power for a wide range of applications, including electric vehicles, backup systems, and more.
- Long Cycle Life: Capable of more than 5000 cycles at 80% Depth of Discharge (DOD) and a 0.5C discharge rate, this battery offers long-lasting performance and minimizes the need for replacements.
- Peak Discharge Current: This battery can handle peak discharge currents of up to 315A for 30 seconds, making it suitable for high-demand applications such as industrial equipment and electric vehicles.
- Smart BMS Protection: The included Battery Management System (BMS) offers comprehensive protection against overcharge, overdischarge, short-circuit, overheating, and more, ensuring safe operation.
- IP66 Rating: The battery’s IP66 rating ensures it is dust-tight and capable of withstanding powerful water jets, making it suitable for use in harsh environments.
- Wide Temperature Range: Operating in a wide temperature range of -20°C to 65°C for discharging and 0°C to 60°C for charging, this battery can be used in diverse environmental conditions.
- Flexible Configuration: The RG51105P supports parallel connections (up to 4 units) for increased storage capacity, making it ideal for scalable energy systems.
- Advanced Communication: Featuring RS485 communication, this battery can be integrated with various energy management systems, allowing for real-time monitoring and control.
- Optional Upgrades: The RG51105P offers a variety of upgrade options, including Bluetooth, APP control, 4G, GPS, solar MPPT, LCD displays, and more, providing additional monitoring and operational capabilities.
Applications
The RG51105P 51.2V 105Ah LiFePO4 Battery is perfect for a range of energy-intensive applications, including:
- Electric Vehicles (EVs)
- Golf Carts and Sightseeing Cars
- Electric Forklifts
- Energy Storage Systems (ESS)
- Backup Power Systems
- Trolling Motors
- Floor Scrubbers
Product Description
The RG51105P 51.2V 105Ah LiFePO4 Battery is a high-performance lithium-ion battery designed for heavy-duty applications that require high energy storage and reliable power. With a 5.37 kWh capacity, this battery is ideal for industries and vehicles that demand high capacity and consistent output. The unit supports up to 315A peak discharge current, enabling it to handle power surges and ensure smooth operation for power-hungry systems.
The battery features an advanced Smart BMS Protection system, which ensures the battery is protected from common faults, including overcharging, overdischarging, overheating, and short-circuiting. With over 5000 cycles at 80% DOD, the RG51105P provides a long lifespan, offering a 10-year design life and a 3-year warranty. This makes it an excellent investment for both commercial and industrial applications that need reliable and consistent energy storage.
The metal shell design and IP66 rating offer superior protection against environmental hazards, including dust and water exposure, making it suitable for both indoor and outdoor installations. In addition, the battery’s RS485 communication allows it to be easily integrated with various management systems, providing real-time monitoring and improved control over its operation.
Additional Features
- Self-Discharge Rate: The RG51105P has a self-discharge rate of 3% per month, ensuring the battery retains its charge even during long periods of inactivity.
- Power Switch: The power switch allows users to easily isolate the battery from the system, ensuring safety and preventing unwanted discharge when not in use.
- Temperature Protection: With a temperature range from -20°C to 65°C for discharging and 0°C to 60°C for charging, the battery performs reliably in both cold and hot environments.

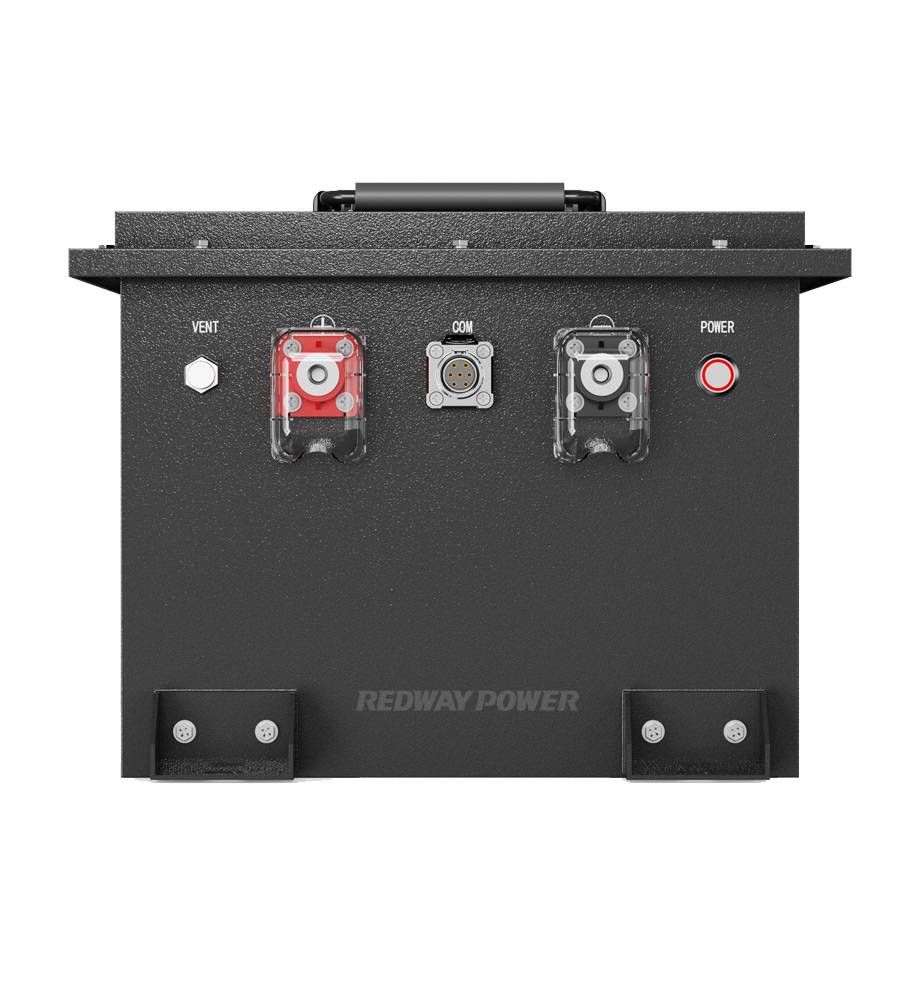

- Terminal Type: The M8 terminal type ensures secure and safe connections for both power and communication, making installation easier and more reliable.
- Certifications: The RG51105P is compliant with international standards, including UL 1642, IEC 62619, CE, MSDS, and UN38.3, ensuring its safety and quality for various applications worldwide.
How Does a 48V 100Ah LiFePO4 Battery with 315A BMS Enhance Golf Cart Power?
The 48V 100Ah LiFePO4 battery with a 315A BMS delivers high-capacity energy storage, robust safety features, and powerful peak discharge current that significantly improves golf cart performance. It offers long cycle life, fast charging, and smart battery management, making it an ideal choice for golf carts requiring reliable, efficient, and safe power.
What are the detailed specifications of the 48V 100Ah LiFePO4 golf cart battery?
This battery features a nominal voltage of 51.2V and a capacity of 100Ah, providing approximately 5.12 kWh of usable energy. It supports a continuous discharge current of around 100-120A and a peak discharge current of 315A for short bursts. The integrated BMS ensures cell balancing and comprehensive protection. Typical dimensions are approximately 527mm x 342mm x 262mm, with a weight near 52 kg. The battery supports CAN, RS485, and Bluetooth communication for real-time monitoring.
How does the 315A BMS protect and optimize the battery?
The 315A BMS monitors voltage, current, temperature, and state of charge to prevent overcharge, over-discharge, short circuit, and overheating. It balances cells for maximum capacity and lifespan and enables peak discharge bursts up to 315A without compromising safety. The BMS also provides communication interfaces for remote monitoring and diagnostics.
What are the recommended charging and discharging parameters?
Charging voltage peaks at about 54.75V to 58.4V with a maximum continuous charge current of 50-100A. The discharge cut-off voltage is around 37.5V. Continuous discharge current is rated near 100-120A, with peak discharge allowed up to 315A for short bursts. Operating temperature ranges from 0°C to 45°C for charging and -20°C to 60°C for discharging, ensuring reliable performance across climates.
How long is the cycle life of the 48V 100Ah LiFePO4 battery?
The battery offers over 3500 to 4000 full charge-discharge cycles at 80% depth of discharge, significantly outperforming traditional lead-acid batteries. This extended lifespan reduces replacement costs and downtime for golf cart users.
How does the battery perform under various temperature conditions?
It operates efficiently from -20°C to 60°C during discharge and 0°C to 45°C during charging. The BMS prevents charging below freezing to protect cells. This wide temperature tolerance ensures consistent power delivery in diverse environments.
What are the physical dimensions and weight of the battery?
Typical dimensions are approximately 527mm (length) x 342mm (width) x 262mm (height), with a weight around 52 kg. The compact, robust design facilitates easy installation and enhances golf cart weight distribution.
What advantages does the LiFePO4 battery offer compared to lead-acid batteries?
LiFePO4 batteries provide higher energy density, longer cycle life, faster charging, and greater safety than lead-acid batteries. They are lightweight, require minimal maintenance, and have a stable voltage output that improves golf cart efficiency and reduces energy costs.
How does Bluetooth or smart monitoring improve battery management?
Bluetooth and CAN interfaces allow users to monitor battery health, state of charge, temperature, and fault alerts in real-time via mobile apps or vehicle systems. This proactive management extends battery life, prevents damage, and improves user confidence.
How do you install and maintain the 48V 100Ah LiFePO4 golf cart battery?
Installation involves securely mounting the battery using supplied brackets, connecting terminals properly, and integrating with the golf cart’s controller. Maintenance is minimal due to the built-in BMS; periodic checks of connections and firmware updates via Bluetooth are recommended to ensure optimal performance.
What environmental benefits does this battery provide?
LiFePO4 batteries are non-toxic, contain no heavy metals, and have a longer lifespan, reducing waste and environmental impact. Their high efficiency lowers energy consumption, contributing to a smaller carbon footprint compared to traditional batteries.
How does the 315A peak discharge current enhance golf cart performance?
The high peak discharge current enables rapid acceleration and better handling of steep inclines or heavy loads by delivering bursts of power when needed. This results in improved responsiveness and a more dynamic driving experience.
Battery Specification Overview Chart
| Feature | Specification | Notes |
|---|---|---|
| Nominal Voltage | 51.2V | Standard 48V nominal |
| Capacity | 100Ah | Deep cycle capacity |
| Energy | ~5.12 kWh | Usable energy |
| Continuous Discharge Current | 100-120A | Sustained current |
| Peak Discharge Current | 315A (short bursts) | High-power bursts |
| Max Charge Current | 50-100A | Continuous charging |
| Charge Voltage Peak | 54.75V – 58.4V | Maximum charging voltage |
| Operating Temp (Charge) | 0°C to 45°C | Safe charging range |
| Operating Temp (Discharge) | -20°C to 60°C | Wide discharge range |
| Dimensions (LxWxH) | ~527 x 342 x 262 mm | Compact form factor |
| Weight | ~52 kg | Lightweight design |
